Recommended slope colours (dark green to dark red)

Source: R/palette.R
slope_colors.Rd

A character vector of six hex colours ranging from dark green (flat, \(\le\)3\ to dark red (steep, >20\ Use directly with slope_breaks and cut() to colour segments by slope proportion (as returned by slope_xyz).

Usage

slope_colors

Format

A character vector of length 6.

See also

slope_breaks, plot_slope

Examples

slope_colors
#> [1] "#267300" "#70A800" "#FFAA00" "#E60000" "#A80000" "#730000"
# \donttest{
route_xyz <- elevation_add(lisbon_route, dem = dem_lisbon())

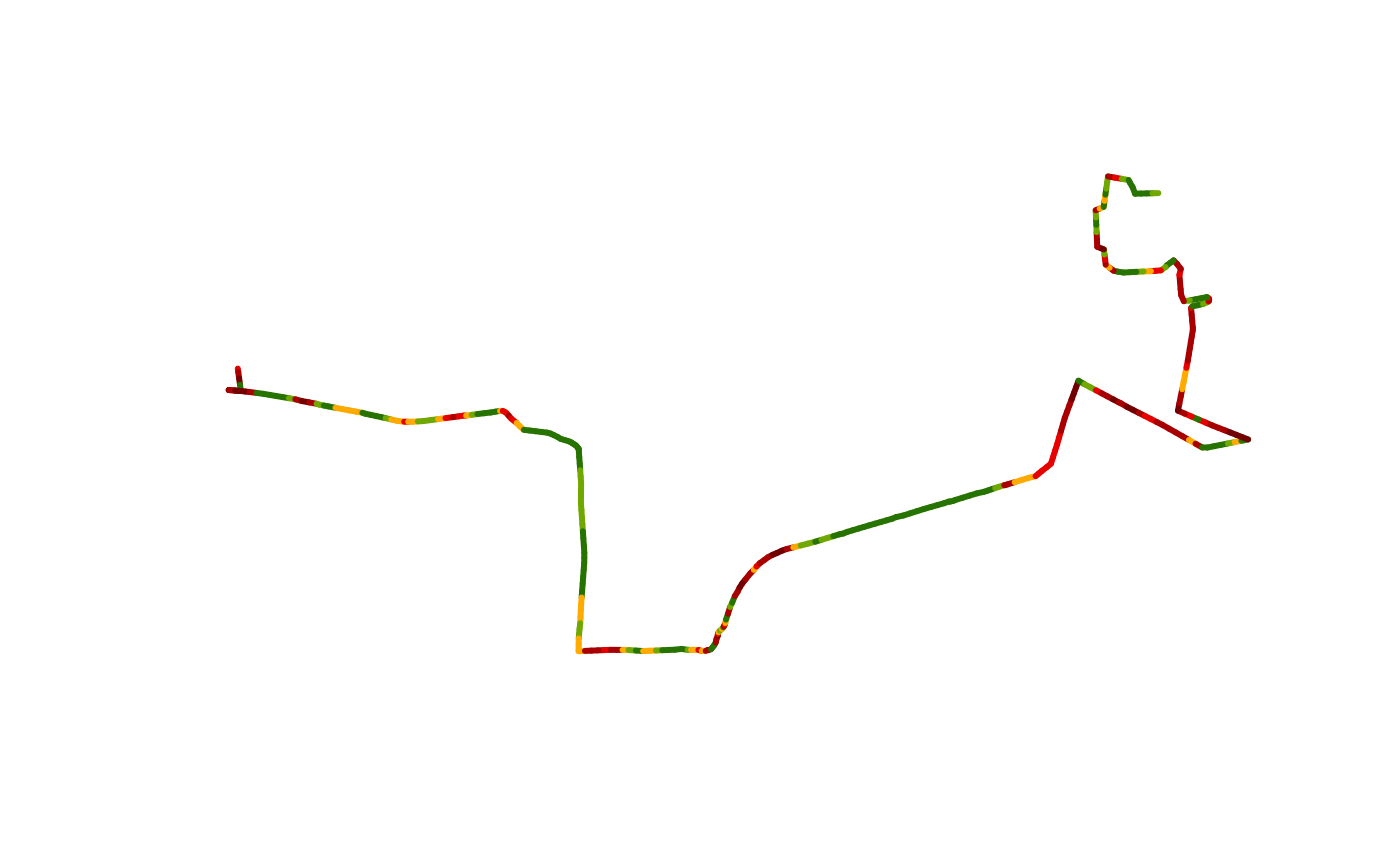

# 1. Colour segments by steepness (ignoring direction) using abs()
segs <- route_to_segments(route_xyz)
segs$slope <- slope_xyz(segs)
col_idx <- cut(abs(segs$slope), breaks = slope_breaks,
  labels = FALSE, include.lowest = TRUE)
plot(sf::st_geometry(segs), col = slope_colors[col_idx], lwd = 3)

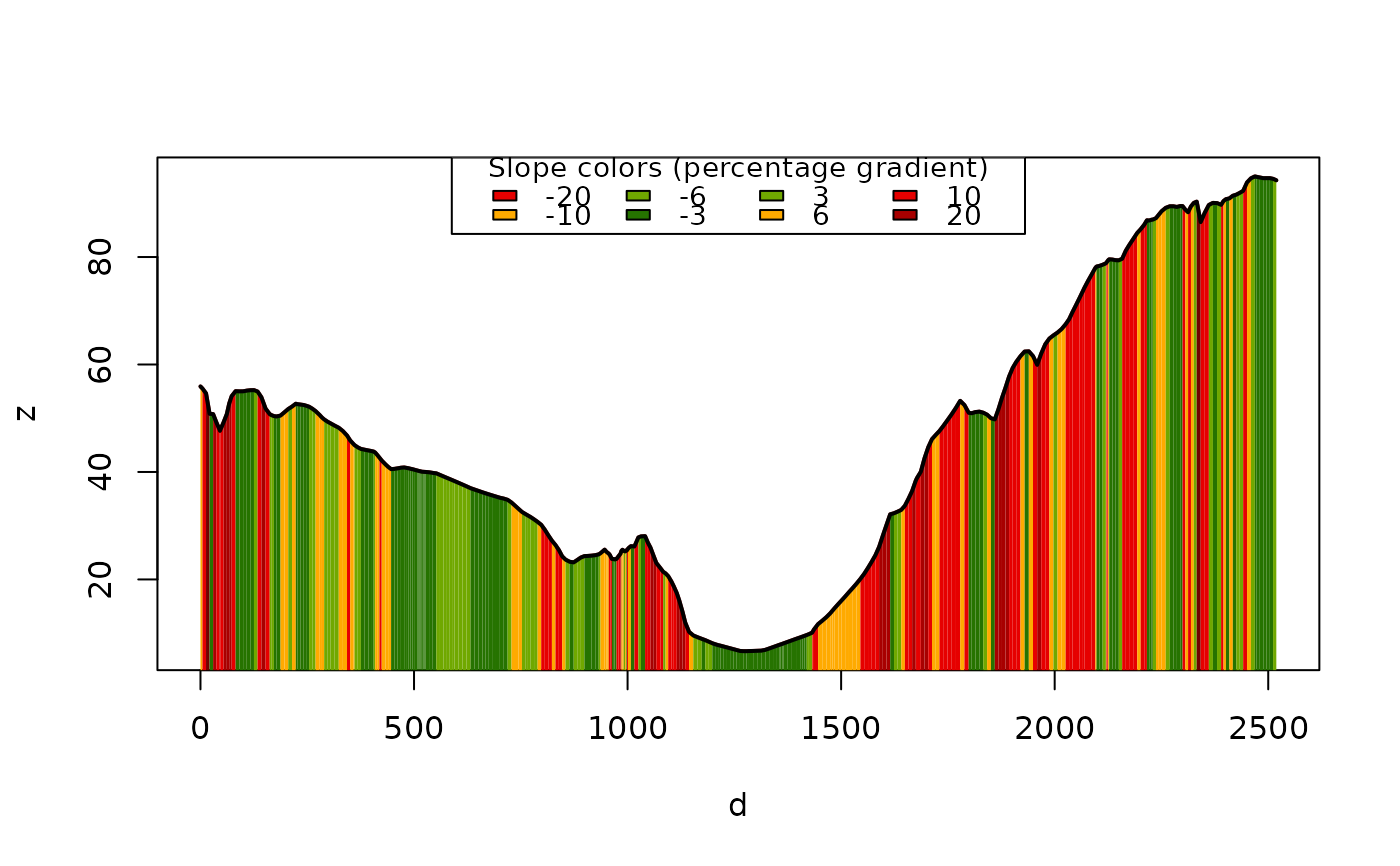

# 2. Symmetric palette for plot_slope(): green = gentle, red = steep either way
plot_slope(route_xyz, pal = c(rev(slope_colors), slope_colors))

# }
