Downloading Climate Normals

Climate Normals and Averages describe the average climate conditions specific to a particular location. These can be downloaded from Environment and Climate Change Canada using the normals_dl() function.

First we’ll load the weathercan package for downloading the data and the tidyr package for unnesting the data (see below).

library(weathercan)
library(tidyr)
library(dplyr)
library(naniar) # For exploring missing values
## Error in library(naniar): there is no package called 'naniar'

To download climate normals, we’ll first find the stations we’re interested in using the stations_search() function. We’ll use the normals_years = "current" argument to filter to only stations with available climate normals for the 1981-2010 year range.

stations_search("Winnipeg", normals_years = "current")
## # A tibble: 1 × 13
##   prov  station_name    station_id climate_id WMO_id TC_id   lat   lon  elev tz    normals
##   <chr> <chr>                <dbl> <chr>       <dbl> <chr> <dbl> <dbl> <dbl> <chr> <lgl>
## 1 MB    WINNIPEG RICHA…       3698 5023222     71852 YWG    49.9 -97.2  239. Etc/… TRUE

Let’s look at the climate normals from this station in Winnipeg, MB. Note that unlike the weather_dl() function, the normals_dl() function requires climate_id not station_id. By default the normals are downloaded for the years “1981-2010” (currently 1981-2010 and 1971-2000 are the only year ranges available)

n <- normals_dl(climate_ids = "5023222")
n
## # A tibble: 1 × 7
##   prov  station_name                climate_id normals_years meets_wmo normals  frost
##   <chr> <chr>                       <chr>      <chr>         <lgl>     <list>   <list>
## 1 MB    WINNIPEG RICHARDSON INT'L A 5023222    1981-2010     TRUE      <tibble> <tibble>

Because there are two different types of climate normals (weather measurements and first/last frost dates), the data are nested as two different datasets. We can see that the Airport (Richardson Int’l) has 197 average weather measurements/codes as well as first/last frost dates.

We can also see that this station has data quality sufficient to meet the WMO standards for temperature and precipitation (i.e. both these measurements have code >= A). See the ECCC calculations document for more details.

To extract either data set we can use the unnest() function from the tidyr package.

normals <- unnest(n, normals)
frost <- unnest(n, frost)

Note that this extracts the measurements for all three stations (in the case of the normals data frame), but not all measurements are available for each station

normals
## # A tibble: 13 × 203
##    prov  station_name         climate_id normals_years meets_wmo period temp_daily_average
##    <chr> <chr>                <chr>      <chr>         <lgl>     <fct>               <dbl>
##  1 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Jan                 -16.4
##  2 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Feb                 -13.2
##  3 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Mar                  -5.8
##  4 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Apr                   4.4
##  5 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      May                  11.6
##  6 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Jun                  17
##  7 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Jul                  19.7
##  8 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Aug                  18.8
##  9 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Sep                  12.7
## 10 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Oct                   5
## 11 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Nov                  -4.9
## 12 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Dec                 -13.2
## 13 MB    WINNIPEG RICHARDSON… 5023222    1981-2010     TRUE      Year                  3

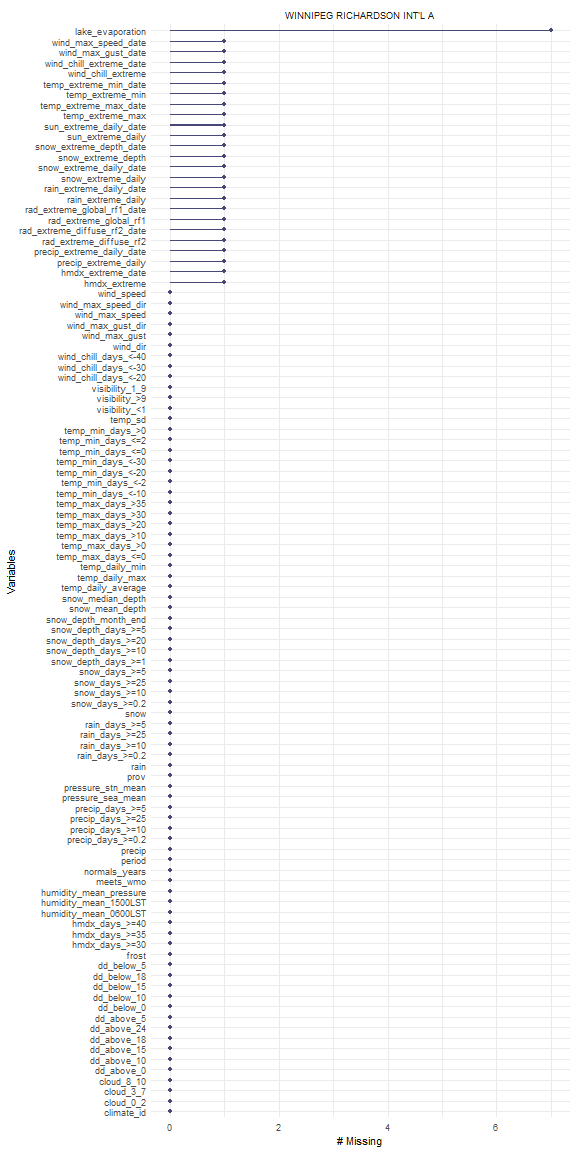

To visualize missing data we can use the gg_miss_var() function from the naniar package.

select(normals, -contains("_code")) %>%  # Remove '_code' columns
  gg_miss_var(facet = station_name)
suppressWarnings({select(normals, -contains("_code")) %>%  # Remove '_code' columns
    gg_miss_var(facet = station_name)})
## Error in gg_miss_var(., facet = station_name): could not find function "gg_miss_var"

Let’s take a look at the frost data.

if("normals" %in% names(frost)) frost <- select(frost, -normals) # tidyr v1
glimpse(frost)
## Rows: 7
## Columns: 13
## $ prov                                  <chr> "MB", "MB", "MB", "MB", "MB", "MB", "MB"
## $ station_name                          <chr> "WINNIPEG RICHARDSON INT'L A", "WINNIPEG R…
## $ climate_id                            <chr> "5023222", "5023222", "5023222", "5023222"…
## $ normals_years                         <chr> "1981-2010", "1981-2010", "1981-2010", "19…
## $ meets_wmo                             <lgl> TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE
## $ frost_code                            <chr> "A", "A", "A", "A", "A", "A", "A"
## $ date_first_fall_frost                 <dbl> 265, 265, 265, 265, 265, 265, 265
## $ date_last_spring_frost                <dbl> 143, 143, 143, 143, 143, 143, 143
## $ length_frost_free                     <dbl> 121, 121, 121, 121, 121, 121, 121
## $ prob                                  <chr> "10%", "25%", "33%", "50%", "66%", "75%", …
## $ prob_first_fall_temp_below_0_on_date  <dbl> 255, 259, 261, 265, 268, 270, 276
## $ prob_length_frost_free                <dbl> 96, 109, 114, 119, 126, 129, 141
## $ prob_last_spring_temp_below_0_on_date <dbl> 158, 152, 148, 144, 140, 137, 129

Finding stations with specific measurements

The include data frame, normals_measurements contains a list of stations with their corresponding measurements. Be aware that this data might be out of date!

normals_measurements
## # A tibble: 307,891 × 5
##    prov  station_name climate_id normals   measurement
##    <chr> <chr>        <chr>      <chr>     <chr>
##  1 AB    HORBURG      301C3D4    1981-2010 temp_daily_average
##  2 AB    HORBURG      301C3D4    1981-2010 temp_daily_average_code
##  3 AB    HORBURG      301C3D4    1981-2010 temp_sd
##  4 AB    HORBURG      301C3D4    1981-2010 temp_sd_code
##  5 AB    HORBURG      301C3D4    1981-2010 temp_daily_max
##  6 AB    HORBURG      301C3D4    1981-2010 temp_daily_max_code
##  7 AB    HORBURG      301C3D4    1981-2010 temp_daily_min
##  8 AB    HORBURG      301C3D4    1981-2010 temp_daily_min_code
##  9 AB    HORBURG      301C3D4    1981-2010 temp_extreme_max
## 10 AB    HORBURG      301C3D4    1981-2010 temp_extreme_max_code
## # ℹ 307,881 more rows

For example, if you wanted all climate_ids for stations that have data on soil temperature for 1981-2010 normals:

normals_measurements %>%
  filter(stringr::str_detect(measurement, "soil"),
         normals == "1981-2010") %>%
  pull(climate_id) %>%
  unique()
##  [1] "3070560" "1100119" "112G8L1" "5021054" "5021848" "8102234" "8403600" "8501900"
##  [9] "8502800" "8202800" "8205990" "2403500" "6073960" "6104025" "6105976" "7040440"
## [17] "7042388" "4012400" "4019035" "4028060" "4043900" "4075518"

Understanding Climate Normals

The measurements contained in the climate normals are very specific. To better understand how they are calculated please explore the following resources:
